JAUS::GlobalWaypoint Class Reference

A simple data structure for storing global waypoint data. More...

#include <globalwaypoint.h>

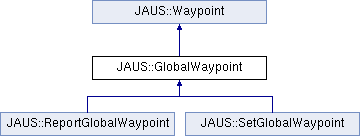

Inheritance diagram for JAUS::GlobalWaypoint:

List of all members.

Classes
class	Limits
	Contains constants for limit values of data members of class. More...
class	PresenceVector
	This class contains bit masks for bitwise operations on the presence vector for this message. More...
Public Types
typedef std::vector < GlobalWaypoint >	List
	Short hand for a vector of waypoints.
Public Member Functions
	GlobalWaypoint ()
	Constructor, initializes default values.
	GlobalWaypoint (const GlobalWaypoint &waypoint)
	Copy constructor.
	GlobalWaypoint (const ReportGlobalWaypoint &waypoint)
	Copy constructor.
	GlobalWaypoint (const SetGlobalWaypoint &waypoint)
	Copy constructor.
virtual	~GlobalWaypoint ()
	Destructor.
bool	SetPosition (const Wgs &position)
	Sets position data.
bool	SetLatitude (const double degrees)
	Sets the latitude and updates the presence vector for the message.
bool	SetLongitude (const double degrees)
	Sets the longitude and updates the presence vector for the message.
bool	SetAltitude (const double value)
	Sets the altitude and updates the presence vector for the message.
bool	SetRoll (const double radians)
	Sets the roll and updates the presence vector for the message.
bool	SetPitch (const double radians)
	Sets the pitch value and updates the presence vector for the message.
bool	SetYaw (const double radians)
	Sets the yaw value and updates the presence vector for the message.
bool	SetWaypointTolerance (const double value)
	Sets the waypoint tolerance value and updates the presence vector for the message.
bool	SetPathTolerance (const double value)
	Sets the path tolerance value and updates the presence vector for the message.
double	GetLatitude () const
double	GetLongitude () const
double	GetAltitude () const
double	GetRoll () const
double	GetPitch () const
double	GetYaw () const
double	GetWaypointTolerance () const
double	GetPathTolerance () const
Wgs	GetPosition () const
Point3D	GetOrientation () const
	Gets Roll, Pitch, Yaw as a Point3D.
virtual void	Print () const
	Prints data to console.
virtual UInt	GetPresenceVector () const
virtual bool	IsSameAs (const Waypoint *waypoint, const double errorInMeters=1.0) const
	Method to check if the waypoints are the same by comparing distance between locations only.
GlobalWaypoint &	operator= (const GlobalWaypoint &waypoint)
	Sets equal to.
GlobalWaypoint &	operator= (const ReportGlobalWaypoint &waypoint)
	Sets equal to.
GlobalWaypoint &	operator= (const SetGlobalWaypoint &waypoint)
	Sets equal to.
Protected Attributes
Byte	mPresenceVector
	Bit vector for fields present.
double	mLatitude
	Latitude in degrees [-90, 90].
double	mLongitude
	Longitude in degrees [-180, 180].
double	mAltitude
	Altitude in meters [-10000, 35000].
double	mRoll
	Roll in radians [-PI, PI].
double	mPitch
	Pitch in radians [-PI, PI].
double	mYaw
	Yaw in radians [-PI, PI].
double	mWaypointTolerance
	Waypoint tolerance in meters [0, 100].
double	mPathTolerance
	Path tolerance in meters [0, 100000], 0 used for infinite tolerance.

---

Detailed Description

A simple data structure for storing global waypoint data.

This structure contains data common to all waypoints, but not necessarily data included in any message structures.

Definition at line 61 of file globalwaypoint.h.

---

Member Typedef Documentation

typedef std::vector<GlobalWaypoint> JAUS::GlobalWaypoint::List

Short hand for a vector of waypoints.

Definition at line 64 of file globalwaypoint.h.

---

Constructor & Destructor Documentation

GlobalWaypoint::GlobalWaypoint

(

)

Constructor, initializes default values.

Definition at line 67 of file globalwaypoint.cpp.

GlobalWaypoint::GlobalWaypoint

(

const GlobalWaypoint &

waypoint )

Copy constructor.

Definition at line 124 of file globalwaypoint.cpp.

GlobalWaypoint::GlobalWaypoint

(

const ReportGlobalWaypoint &

waypoint )

Copy constructor.

Definition at line 86 of file globalwaypoint.cpp.

GlobalWaypoint::GlobalWaypoint

(

const SetGlobalWaypoint &

waypoint )

Copy constructor.

Definition at line 105 of file globalwaypoint.cpp.

GlobalWaypoint::~GlobalWaypoint

(

)

[virtual]

Destructor.

Definition at line 135 of file globalwaypoint.cpp.

---

Member Function Documentation

double JAUS::GlobalWaypoint::GetAltitude

(

)

const [inline]

Definition at line 121 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetLatitude

(

)

const [inline]

Definition at line 119 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetLongitude

(

)

const [inline]

Definition at line 120 of file globalwaypoint.h.

Point3D GlobalWaypoint::GetOrientation

(

)

const

Gets Roll, Pitch, Yaw as a Point3D.

Returns:

Orientation Desired Roll(X), Pitch(Y), Yaw(Z) stored as a Point3D.

Definition at line 346 of file globalwaypoint.cpp.

double JAUS::GlobalWaypoint::GetPathTolerance

(

)

const [inline]

Definition at line 126 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetPitch

(

)

const [inline]

Definition at line 123 of file globalwaypoint.h.

Wgs GlobalWaypoint::GetPosition

(

)

const

Returns:

Current position data set in structure.

Definition at line 333 of file globalwaypoint.cpp.

virtual UInt JAUS::GlobalWaypoint::GetPresenceVector

(

)

const [inline, virtual]

Reimplemented in JAUS::ReportGlobalWaypoint, and JAUS::SetGlobalWaypoint.

Definition at line 130 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetRoll

(

)

const [inline]

Definition at line 122 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetWaypointTolerance

(

)

const [inline]

Definition at line 125 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::GetYaw

(

)

const [inline]

Definition at line 124 of file globalwaypoint.h.

bool GlobalWaypoint::IsSameAs	(	const Waypoint *	waypoint,
		const double	errorInMeters = 1.0
	)		const [virtual]

Method to check if the waypoints are the same by comparing distance between locations only.

Parameters:

[in]	waypoint	Waypoint to compare with.
[in]	errorInMeters	Tolerance for distance check in meters.

Returns:

True if the same, false otherwise.

Implements JAUS::Waypoint.

Definition at line 388 of file globalwaypoint.cpp.

GlobalWaypoint & GlobalWaypoint::operator=

(

const GlobalWaypoint &

waypoint )

Sets equal to.

Reimplemented in JAUS::ReportGlobalWaypoint, and JAUS::SetGlobalWaypoint.

Definition at line 408 of file globalwaypoint.cpp.

GlobalWaypoint & GlobalWaypoint::operator=

(

const ReportGlobalWaypoint &

waypoint )

Sets equal to.

Reimplemented in JAUS::ReportGlobalWaypoint.

Definition at line 457 of file globalwaypoint.cpp.

GlobalWaypoint & GlobalWaypoint::operator=

(

const SetGlobalWaypoint &

waypoint )

Sets equal to.

Reimplemented in JAUS::SetGlobalWaypoint.

Definition at line 434 of file globalwaypoint.cpp.

void GlobalWaypoint::Print

(

)

const [virtual]

Prints data to console.

Definition at line 359 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetAltitude

(

const double

value )

Sets the altitude and updates the presence vector for the message.

Parameters:

[in]

value

Desired Altitude in meters [-10000, 35000].

Returns:

true on success, otherwise false.

Definition at line 209 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetLatitude

(

const double

degrees )

Sets the latitude and updates the presence vector for the message.

Parameters:

[in]

degrees

Desired latitude in degrees [-90, 90].

Returns:

true on success, otherwise false.

Definition at line 168 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetLongitude

(

const double

degrees )

Sets the longitude and updates the presence vector for the message.

Parameters:

[in]

degrees

Desired longitude in degrees [-180, 180].

Returns:

true on success, otherwise false.

Definition at line 188 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetPathTolerance

(

const double

value )

Sets the path tolerance value and updates the presence vector for the message.

Parameters:

[in]

value

Desired path tolerance in meters[0, 100000].

Returns:

true on success, otherwise false.

Definition at line 316 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetPitch

(

const double

radians )

Sets the pitch value and updates the presence vector for the message.

Parameters:

[in]

radians

Desired pitch in radians[-PI, PI].

Returns:

true on success, otherwise false.

Definition at line 251 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetPosition

(

const Wgs &

position )

Sets position data.

Parameters:

[in]

position

Position to set.

Returns:

true on success, otherwise false.

Definition at line 149 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetRoll

(

const double

radians )

Sets the roll and updates the presence vector for the message.

Parameters:

[in]

radians

Desired roll in radians[-PI, PI].

Returns:

true on success, otherwise false.

Definition at line 230 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetWaypointTolerance

(

const double

value )

Sets the waypoint tolerance value and updates the presence vector for the message.

Parameters:

[in]

value

Desired waypoint tolerance in meters[0, 100].

Returns:

true on success, otherwise false.

Definition at line 294 of file globalwaypoint.cpp.

bool GlobalWaypoint::SetYaw

(

const double

radians )

Sets the yaw value and updates the presence vector for the message.

Parameters:

[in]

radians

Desired pitch in radians[-PI, PI].

Returns:

true on success, otherwise false.

Definition at line 272 of file globalwaypoint.cpp.

---

Member Data Documentation

double JAUS::GlobalWaypoint::mAltitude [protected]

Altitude in meters [-10000, 35000].

Definition at line 139 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mLatitude [protected]

Latitude in degrees [-90, 90].

Definition at line 137 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mLongitude [protected]

Longitude in degrees [-180, 180].

Definition at line 138 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mPathTolerance [protected]

Path tolerance in meters [0, 100000], 0 used for infinite tolerance.

Definition at line 144 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mPitch [protected]

Pitch in radians [-PI, PI].

Definition at line 141 of file globalwaypoint.h.

Byte JAUS::GlobalWaypoint::mPresenceVector [protected]

Bit vector for fields present.

Definition at line 136 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mRoll [protected]

Roll in radians [-PI, PI].

Definition at line 140 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mWaypointTolerance [protected]

Waypoint tolerance in meters [0, 100].

Definition at line 143 of file globalwaypoint.h.

double JAUS::GlobalWaypoint::mYaw [protected]

Yaw in radians [-PI, PI].

Definition at line 142 of file globalwaypoint.h.

---

The documentation for this class was generated from the following files:

• jaus++/2.0/include/jaus/mobility/drivers/globalwaypoint.h
• jaus++/2.0/src/jaus/mobility/drivers/globalwaypoint.cpp
