JAUS::Joystick Class Reference

Interface for using a joystick to control a Primitive Driver service. More...

#include <joystick.h>

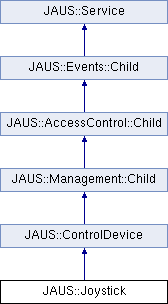

Inheritance diagram for JAUS::Joystick:

List of all members.

Public Member Functions
	Joystick ()
	Constructor, initializes default value.
virtual	~Joystick ()
	Destructor.
void	EnableJoystick (const bool enable=true)
bool	IsJoystickEnabled () const
virtual void	Shutdown ()
	Shutsdown the service.
virtual bool	LoadSettings (const std::string &filename)
	Loads settings for the service from an XML file.
virtual void	ProcessJoystickEvent (const CxUtils::Joystick &jstick)
	Process joystick update and generates a wrench effort.
virtual void	ProcessButtonEvent (const unsigned int buttonNumber, const CxUtils::Joystick::Event type)
	Process button press events.
virtual void	CheckServiceStatus (const unsigned int timeSinceLastCheckMs)
	Called periodicly by the Component the service belongs to. This method attempts to lookup a primitive driver on the subsystem we are trying to control.
Protected Attributes
CxUtils::Joystick	mJoystick
	Interface to the joystick.
unsigned int	mID
	Joystick ID to connect to.
unsigned int	mFrequency
	Desired joystick update frequency.
std::string	mCalibrationFile
	Joystick calibration file data.
volatile bool	mEnableJoystickFlag
	If true, connect to joystick (default).

---

Detailed Description

Interface for using a joystick to control a Primitive Driver service.

Definition at line 55 of file joystick.h.

---

Constructor & Destructor Documentation

Joystick::Joystick

(

)

Constructor, initializes default value.

Definition at line 52 of file joystick.cpp.

Joystick::~Joystick

(

)

[virtual]

Destructor.

Definition at line 66 of file joystick.cpp.

---

Member Function Documentation

void Joystick::CheckServiceStatus

(

const unsigned int

timeSinceLastCheckMs )

[virtual]

Called periodicly by the Component the service belongs to. This method attempts to lookup a primitive driver on the subsystem we are trying to control.

Reimplemented from JAUS::ControlDevice.

Definition at line 187 of file joystick.cpp.

void JAUS::Joystick::EnableJoystick

(

const bool

enable = true )

[inline]

Definition at line 64 of file joystick.h.

bool JAUS::Joystick::IsJoystickEnabled

(

)

const [inline]

Definition at line 66 of file joystick.h.

bool Joystick::LoadSettings

(

const std::string &

filename )

[virtual]

Loads settings for the service from an XML file.

Parameters:

[in]

filename

Name of the XML file containing data.

Returns:

True on success, false on failure.

Reimplemented from JAUS::ControlDevice.

Definition at line 81 of file joystick.cpp.

void Joystick::ProcessButtonEvent	(	const unsigned int	buttonNumber,
		const CxUtils::Joystick::Event	type
	)		[virtual]

Process button press events.

Definition at line 163 of file joystick.cpp.

void Joystick::ProcessJoystickEvent

(

const CxUtils::Joystick &

jstick )

[virtual]

Process joystick update and generates a wrench effort.

Definition at line 135 of file joystick.cpp.

virtual void JAUS::Joystick::Shutdown

(

)

[inline, virtual]

Shutsdown the service.

Reimplemented from JAUS::ControlDevice.

Definition at line 68 of file joystick.h.

---

Member Data Documentation

std::string JAUS::Joystick::mCalibrationFile [protected]

Joystick calibration file data.

Definition at line 81 of file joystick.h.

volatile bool JAUS::Joystick::mEnableJoystickFlag [protected]

If true, connect to joystick (default).

Definition at line 82 of file joystick.h.

unsigned int JAUS::Joystick::mFrequency [protected]

Desired joystick update frequency.

Definition at line 80 of file joystick.h.

unsigned int JAUS::Joystick::mID [protected]

Joystick ID to connect to.

Definition at line 79 of file joystick.h.

CxUtils::Joystick JAUS::Joystick::mJoystick [protected]

Interface to the joystick.

Definition at line 78 of file joystick.h.

---

The documentation for this class was generated from the following files:

• jaus++/2.0/include/jaus/extras/controllers/joystick.h
• jaus++/2.0/src/jaus/extras/controllers/joystick.cpp
